3.2mm Solar Matt Prismatic Glass is a high-performance tempered solar glass designed for photovoltaic and solar energy applications. The glass is manufactured from low-iron float glass and processed with prismatic patterning combined with matte surface treatment to enhance light transmission, reduce reflection losses, and improve overall solar energy efficiency. All glass is fully tempered to ensure high mechanical strength and safety performance.

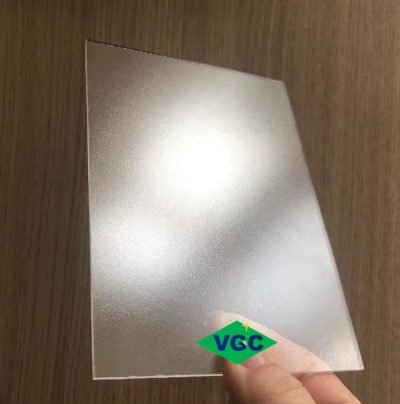

3,2mm SOLAR MATT PRISMATIC GLASS

3,2MM Solar Matt Prismatic Glass For Solar Collector

1. Technical Parameters

Item Specification
Glass Type  Pattern Glass ( Rolled Glass)
Nominal Thickness 2.0mm/2.5mm/3.2 mm/4.0mm
Thickness Tolerance ±0.2 mm
Glass Composition Low-Iron Prismatic Glass
Surface Finish Matt / Prismatic
Coating Option Uncoated / Single-side AR (optional)/ Double AR Coated
Processing  Half Tempered/Fully Tempered
Edge Treatment C-Edge (Chamfered Edge), Simple Grinding edges
Shape Rectangular, Round, Customized Shapes
Color Extra Clear, Middle Iron

2. Optical Properties

Property Typical Value
Solar Transmittance ≥ 91.5%
Light Diffusion High
Reflection Reduction Optimized by prismatic structure
Haze Controlled matte diffusion

(Values may vary slightly depending on size and coating option)

3. Mechanical & Thermal Properties

Property Specification
Tempering Standard EN 12150 / ASTM C1048
Bending Strength ≥ 120 MPa
Impact Resistance High
Thermal Shock Resistance ≥ 200°C
Breakage Pattern Small blunt granules (Safety Glass)



4. Application Areas

  • Photovoltaic (PV) solar modules

  • Solar thermal collectors

  • BIPV systems

  • Outdoor renewable energy equipment

  • Solar Greenhouses

6. Packing & Logistics

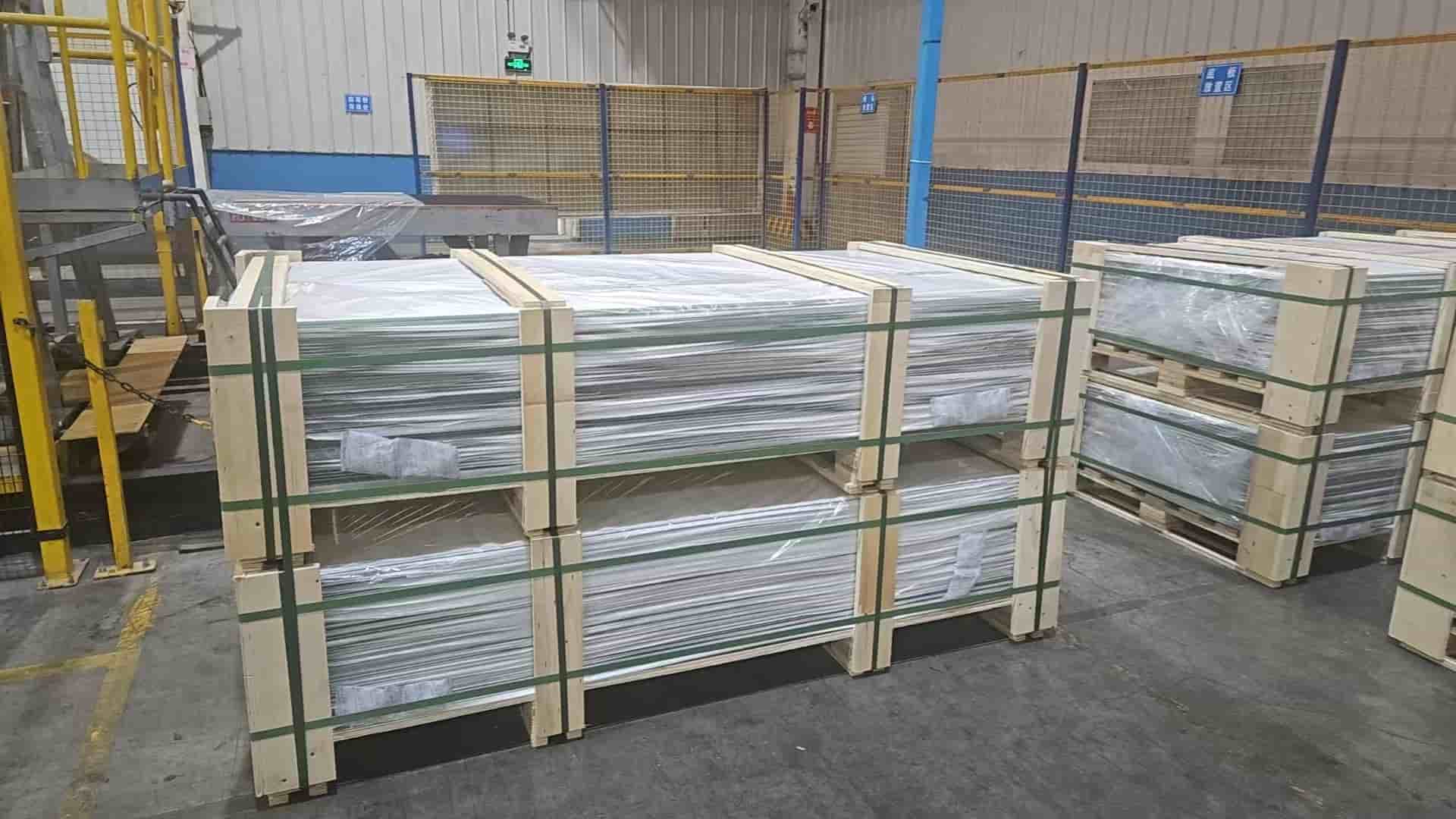

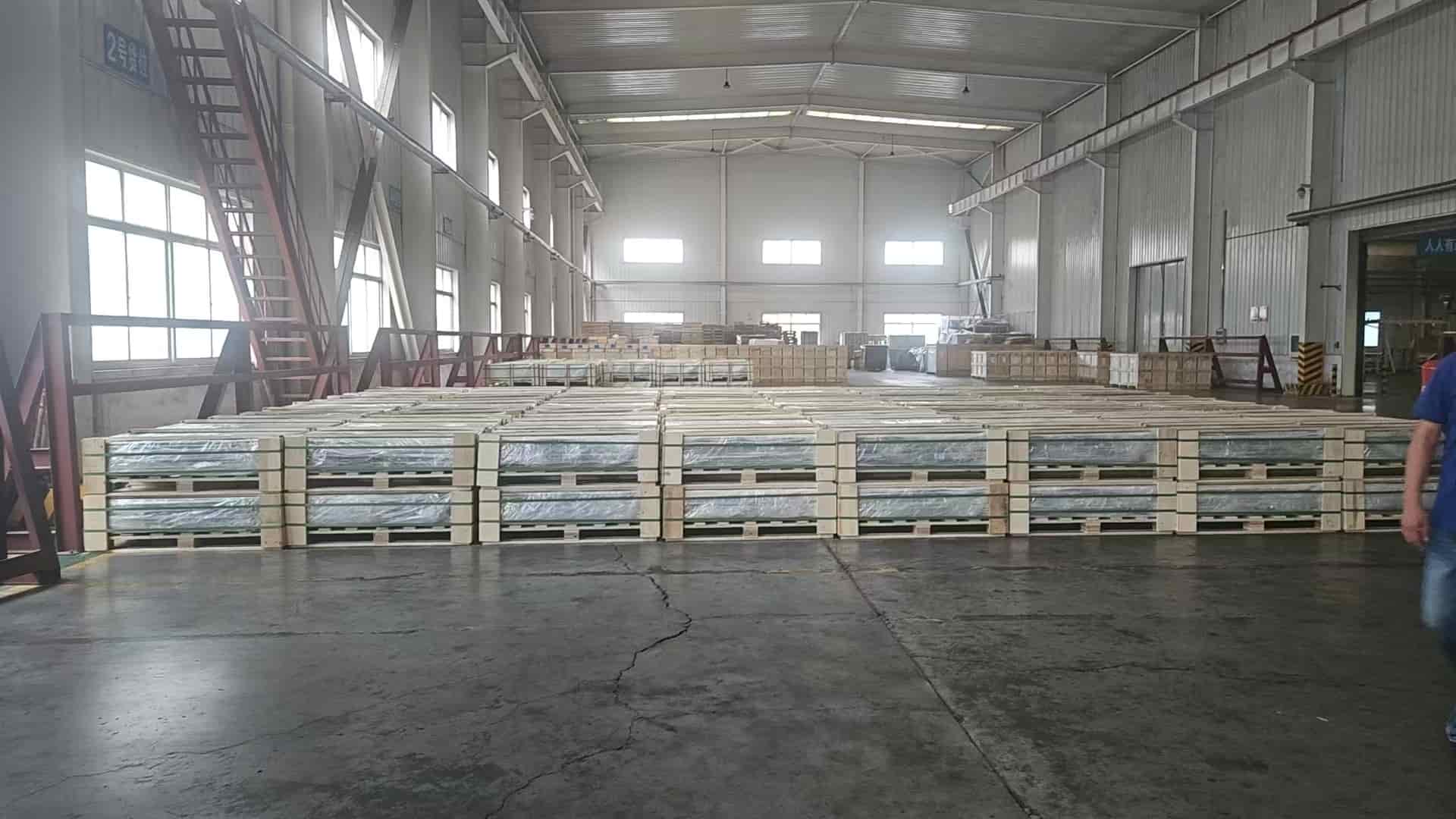

  • Packing: Strong seaworthy wooden crates

  • Crates Quantity: As per order specification

  • Container Loading: Full container / Shared container available

  • Unit of Measure: m²

Quality & Compliance of Solar Matt Prismatic Glass

  • Complies with international solar glass requirements

  • Tempered safety glass

  • Suitable for long-term outdoor use

  • Resistant to UV exposure, humidity, wind load, and hail impact
