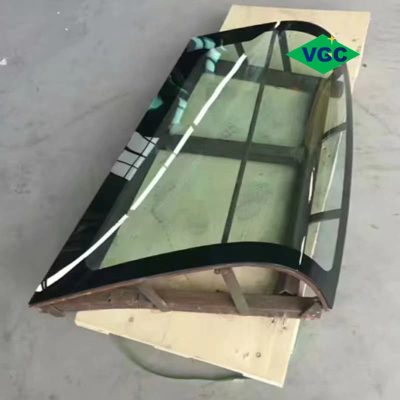

VGC LOW-E curved tempered glass for Freezer cabinet door is a high-performance specialized glass engineered for curved freezer cabinet door applications. Integrating curved tempering technology and Low-E (Low-Emissivity) coating, this glass not only meets the aesthetic and structural requirements of curved freezer doors but also delivers exceptional thermal insulation and energy-saving performance. It is widely applicable to commercial display freezers, supermarket refrigeration cabinets, and high-end household freezers, ensuring stable low-temperature environments inside the cabinet while reducing energy consumption.

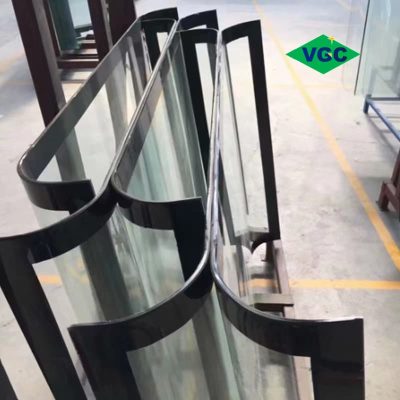

Door curved tempered glass factory China
Standard Product Specifications
Descriptions: LOW-E curved tempered glass+ Straight Edge Polishing + Chamfering (Chamfer ≤ 1mm)
Thickness:4mm/5mm/6mm/8mm
Edge: Flat Polished Edges+1mm chamferng
Sizes: 870*670mm,1250*670mm,990*680mm,1450*670mm, and Any customized sizes
Shapes: Curved,J curved shape, any customized shapes
VGC Hot Structures of Curved Freezer Glass
6mm Clear Tempered Glass (Curved Tempered R1022) + Straight Edge Polishing + Chamfering (Chamfer ≤ 1mm) | 1497*672 | Clear Glass
6mm Clear Tempered Glass (Curved Tempered R1022) + Straight Edge Polishing + Chamfering (Chamfer ≤ 1mm) | 997*672 | Clear Glass
6mm Clear Tempered Glass (Curved Tempered R1022) + Straight Edge Polishing + Chamfering (Chamfer ≤ 1mm) | 1247*672 | Clear Glass
6mm Clear Tempered Glass (Curved Tempered R1022) + Straight Edge Polishing + Chamfering (Chamfer ≤ 1mm) | 873*672 | Clear Glass
Core Advantages
|
Parameter Item
|
Specification
|
Test Standard
|
|---|---|---|
|
Low-E Coating Performance
|
Emissivity ≤ 0.15; Solar Heat Gain Coefficient (SHGC) 0.3-0.5
|
ISO 15368
|
|
Transmittance
|
≥ 85% (Visible Light)
|
GB/T 2680
|
|
Bending Strength
|
≥ 150 MPa
|
ISO 1288-1
|
|
Curved Tempering Quality
|
No distortion; Surface flatness ≤ 0.2mm/m
|
ISO 12543-1
|
|
Temperature Resistance Range
|
-60℃ ~ 120℃
|
GB/T 9963-2016
|
|
Impact Resistance
|
No breakage when impacted by
1kg steel ball from 1.5m height
|
ISO 12543-1
|
|
Edge Processing Precision
|
Straight edge flatness ≤ 0.1mm/m;
Chamfer uniformity ≤ 1mm
|
JGT 455-2014
|
Core Advantages
-
Superior Safety Performance: Tempered glass is processed by high-temperature quenching, which is 3-5 times stronger than ordinary annealed glass. When broken, it shatters into small blunt fragments, avoiding sharp cuts and ensuring user safety in daily use and maintenance.
-
Excellent Curved Tempering Quality: Adopts advanced curved tempering technology, ensuring uniform curvature, no surface distortion, and high structural stability. It can perfectly match the curved design of freezer cabinet doors, enhancing the overall aesthetic appeal of the equipment.
-
Superior Energy-Saving Performance: Equipped with high-performance Low-E coating, the glass effectively reflects infrared radiation, reducing heat transfer between the inside and outside of the freezer. It can lower the freezer’s energy consumption by 35%-50% compared to ordinary curved glass, significantly reducing long-term operating costs.
-
Stable Low-Temperature Adaptability: Specially optimized for freezer working environments, it maintains structural integrity without cracking or deformation under extreme low temperatures (-60℃), ensuring long-term reliable operation.
-
Reliable Safety Performance: Tempered glass is 3-5 times stronger than annealed glass. When broken, it shatters into small blunt fragments, avoiding sharp cuts and ensuring the safety of users and maintenance personnel.
Application Scenarios
Widely used in the door panels of various curved freezer cabinets, including: Commercial curved display freezers in supermarkets and convenience stores, high-end household curved freezers, pharmaceutical low-temperature curved storage cabinets, and food refrigeration curved display counters. It is suitable for scenarios that require both aesthetic curved design and high energy-saving performance.
-
High Clarity & Display Effect: High visible light transmittance (≥ 85%) provides clear observation of the stored items inside the freezer, which is ideal for commercial display freezers to attract customers.
All LOW-E curved tempered glass for Freezer cabinet door products comply with international standards such as ISO, CE, and SGS. We implement strict quality control throughout the production process, from raw material selection to finished product inspection, to ensure stable product performance and reliable quality. Customization services are available, including personalized curved radius, size, thickness, and edge processing, to fully meet the specific design requirements of different freezer cabinet manufacturers.
-
Excellent Low-Temperature Adaptability: Specially optimized for freezer working conditions, it maintains structural stability without cracking or deformation under extreme low temperatures, ensuring long-term reliable operation of refrigeration equipment.
For more information about LOW-E curved tempered glass for Freezer cabinet door product quotations, technical parameters, or customization requirements, please contact our sales team. We will provide you with professional solutions and high-quality services.
Quality Assurance & Customization Services for LOW-E curved tempered glass for Freezer cabinet door
-
High Clarity & Visibility: High light transmittance (≥ 91%) provides clear observation of internal stored items, which is ideal for display freezers in supermarkets, convenience stores and other commercial scenarios.
-
Precise Processing Quality: Straight edge polishing ensures smooth and burr-free edges; strict chamfering control (≤ 1mm) prevents edge chipping and improves installation safety. The consistent size accuracy ensures perfect matching with freezer door frames.
-
Durable & Easy to Maintain: The surface of clear tempered glass is wear-resistant and corrosion-resistant, not easy to scratch or discolor. It requires no special maintenance during use, reducing the later replacement and maintenance costs of users.

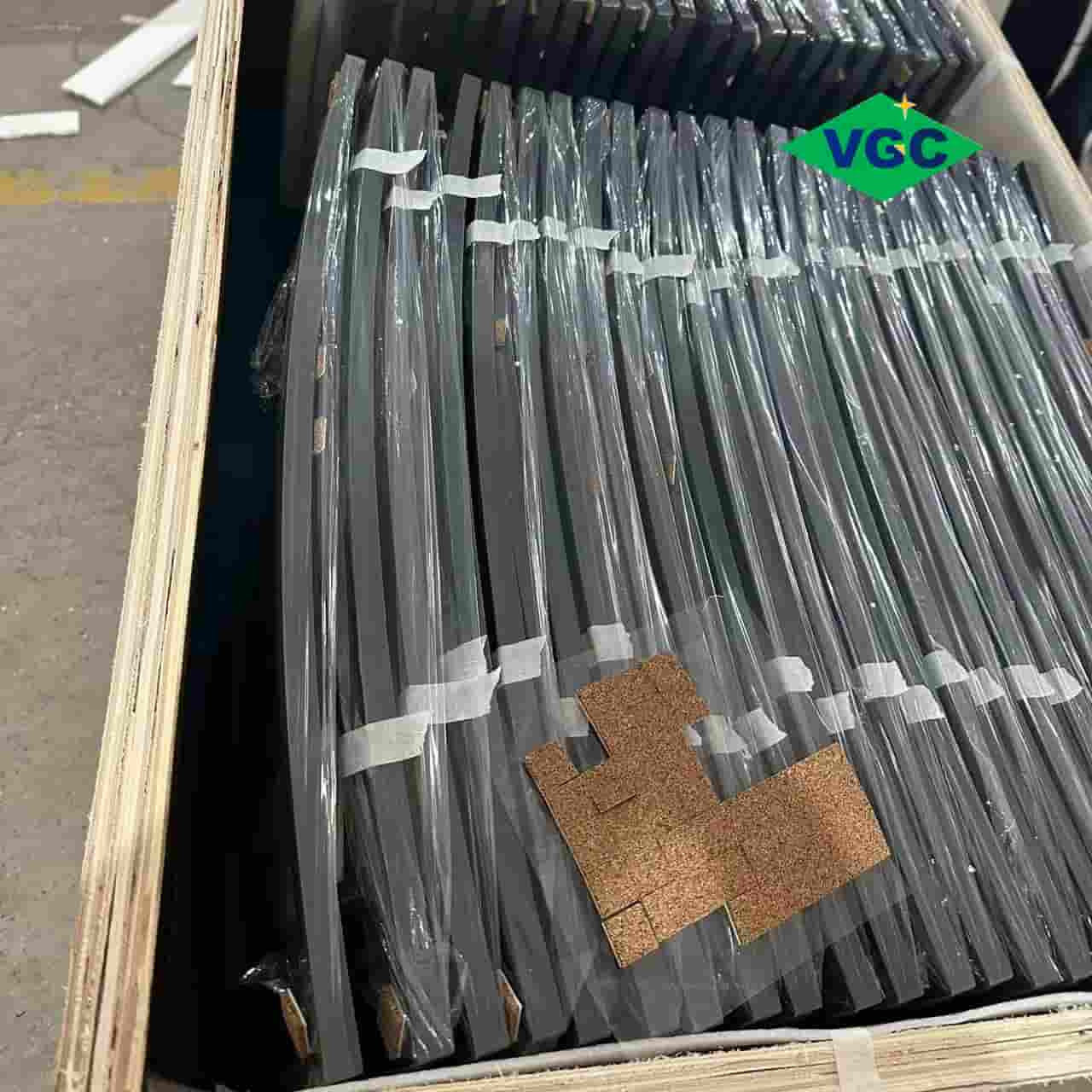

safety packing of curved door glass
