Product Overview
Nashiji Wired Glass is a high-performance safety glass integrating fire resistance, impact resistance and decorative functions. Featuring a unique pear-skin texture (Nashiji pattern) and built-in metal wire mesh, this clear patterned glass not only ensures excellent light transmittance but also provides reliable fire protection, making it an ideal choice for various building scenarios requiring safety and aesthetics. Manufactured by VGC GLASS, our Nashiji Wired Glass strictly complies with national and industry standards, ensuring stable quality and consistent performance.

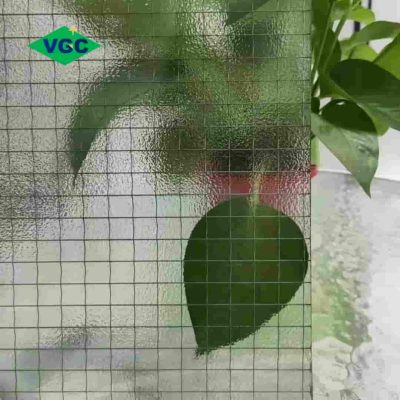

6mm Nashiji Wired Glass

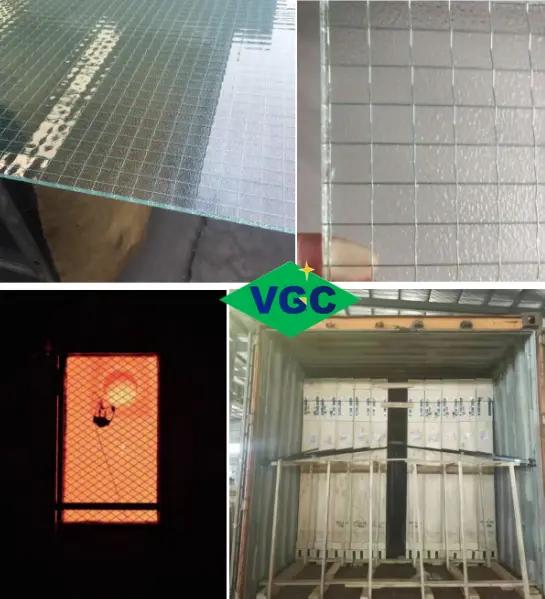

Fire Resistant Pattern Glass
Key Features of 6mm Nashiji Wired Glass
-
Superior Fire Resistance: As a professional fire-resistant wired glass, it maintains structural integrity when exposed to fire. The embedded wire mesh prevents glass fragments from scattering, delays flame and smoke penetration, and provides basic fire integrity (complies with JC433-1991 (1996) standard).
-
Unique Decorative Texture: Nashiji pattern (pear-skin texture) with uniform fine concave-convex grains offers an elegant appearance, non-glare effect, and certain privacy protection while maintaining high transparency (light transmittance ≥ 85%).
-
Reliable Safety Performance: Built-in high-quality wire mesh (square mesh or diamond mesh optional) enhances impact resistance. No cracks, scratches or harmful inclusions, ensuring safe application in public and residential areas.
-
Strict Quality Control: Tested by Qingdao Product Quality Supervision and Testing Research Center, all inspection items (dimension tolerance, flatness, edge defects, wire mesh embedding, etc.) meet standard requirements.
-
Customizable Specifications: Available in multiple standard sizes and thicknesses, supporting customization for bulk orders to meet diverse project needs.
Technical Specifications
|
Parameter
|
Details
|
|---|---|
|
Product Name
|
Nashiji Wired Glass (Clear Pattern Wired Glass)
|
|
Standard Sizes
|
1830×2440mm, 2440×2000mm, 2500×1830mm,
2000×2500mm (customizable for bulk orders,
max 3660mm×6000mm)
|
|
Thickness
|
6mm (other thicknesses available on request:
4mm, 5mm, 8mm)
|
|
Wire Mesh Specification
|
0.4mm×12mm×12mm galvanized iron wire mesh;
stainless steel wire mesh optional (anti-rust, long service life);
square mesh or diamond mesh available
|
|
Glass Clarity
|
High transparency, light transmittance ≥ 85%
|
|
Dimension Tolerance
|
Length/Width: -1.0～+1.0mm
(standard requirement: ±4.0mm);
Thickness: -0.12～+0.13mm
(standard requirement: ±0.6mm)
|
|
Flatness
|
0.09%～0.35% (standard requirement: <1.0%)
|
|
Test Standard
|
JC433-1991 (1996) Wired Glass Standard
|
Fire Resistance Performance
1. The built-in metal wire mesh effectively holds glass fragments when the glass cracks under fire conditions, avoiding scattering hazards and ensuring basic fire integrity.
2. Under high-temperature fire conditions, the wire mesh maintains the structural stability of the glass, delaying the penetration of flames and smoke, and winning valuable escape time.
3. Passes strict fire resistance tests, fully complying with the safety requirements of fire protection-related applications.
Application Scenarios
Widely used in building projects requiring both fire protection and decoration, including:
-
Fire windows, fire doors and fire partitions in commercial buildings, residential buildings and industrial workshops
-
Interior partitions, bathroom windows and kitchen cabinet doors in homes, hotels and offices
-
Skylights, canopies and balcony railings in public places (shopping malls, hospitals, schools)
-
Decorative walls and display cabinets in high-end venues (restaurants, exhibition halls, museums)
Supplier Information
Supplier: VGC GLASS
We are a professional manufacturer and supplier of wired glass, providing high-quality Nashiji Wired Glass and customized glass solutions for global customers. Our products are widely exported to overseas markets, with complete certification and reliable after-sales service. Welcome to inquire about bulk orders and cooperation.
Summary
Our 6mm Nashiji Wired Glass is a high-quality fire-resistant safety glass that combines aesthetics, safety and practicality. With strict compliance with JC433-1991 (1996) standard, excellent fire resistance, unique decorative texture and customizable specifications, it is the preferred choice for building applications requiring fire protection and decoration. Choose VGC GLASS’s Nashiji Wired Glass to ensure the safety and beauty of your building projects.
