12.76mm/13.52mm Museum Laminated AR Glass | VGC Low-Iron Anti-Reflective Glass

VGC’s 12.76mm and 13.52mm Museum Laminated AR Glass are specifically engineered for high-end cultural relic display scenarios, integrating low-iron glass substrate, double-sided anti-reflective (AR) coating, and high-performance PVB interlayer. These two optimized structures balance exceptional optical clarity, reliable safety protection, and artifact preservation, making them ideal choices for museums, art galleries, luxury showcases, and private collection enclosures worldwide.

CLEAR GLASS v.s LOW IRON GLASS

Low reflection Museum Display glass

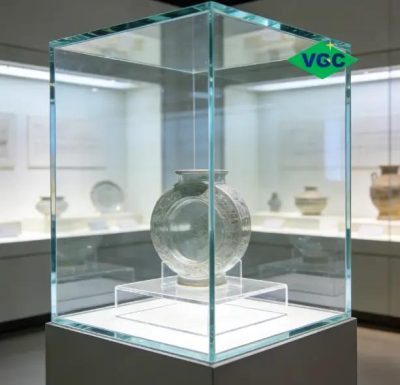

Museum Laminated AR Glass

💡 Note: For enhanced UV protection (≥99%), VGC provides optional UV-cut PVB interlayers or specialized UV coatings to meet the preservation needs of light-sensitive exhibits (e.g., paintings, textiles, paper artifacts).

Product Structures (Low-Iron Anti-Reflective Glass)

Both structures adopt high-purity low-iron glass to minimize color distortion, paired with professional AR coatings for glare elimination:

12.76mm Structure: 6mm AR Low-Iron Glass + 0.76mm PVB + 6mm Low-Iron Glass (economical and efficient solution)
13.52mm Structure: 6mm AR Low-Iron Glass + 1.52mm PVB + 6mm Low-Iron Glass (enhanced security and UV protection)

Summary: 12.76mm vs. 13.52mm Structure

Feature	12.76mm Structure	13.52mm Structure
Cost	More economical, cost-effective choice	Slightly higher (due to thicker PVB interlayer)
Visual Performance	Excellent (consistent with 13.52mm)	Excellent (consistent with 12.76mm)
UV Protection	Moderate (UV-cut layer recommended for light-sensitive exhibits)	Better natural UV absorption, stronger protection
Security & Anti-Theft	Standard safety performance	Enhanced security and penetration resistance

Superior Optical Performance for Museum Displays

Designed to meet the strict clarity and color accuracy requirements of museum environments, our Laminated AR Glass delivers outstanding optical performance:

Parameter	Typical Values	Core Benefits
Visible Light Transmittance (VLT)	≥ 96.5% (double-sided AR coating)	Exceptional clarity, ensuring every detail of exhibits is clearly visible
Visible Light Reflectance (VLR)	≤ 1.0% (double-sided AR coating)	Virtually glare-free viewing experience, eliminating light reflection interference
UV Transmittance (UVT)	12.76mm: 45–55%; 13.52mm: 25–35%	Thicker PVB interlayer enhances UV absorption, protecting exhibits from fading and deterioration
Color Distortion	Near zero (low-iron + AR coating)	Neutral and true-to-life color rendering, faithfully restoring the original appearance of cultural relics

Reliable Safety & Long-Term Protection (Museum Laminated AR Glass)

Beyond optical excellence, our Laminated AR Glass ensures comprehensive safety and long-term protection for exhibits and visitors:

Property	Performance	Key Notes
Impact Resistance	Complies with EN 12600 / ANSI Z97.1	Effectively prevents glass shattering and flying debris, avoiding damage to exhibits
Post-Breakage Adhesion	PVB interlayer holds shattered glass tightly	Maintains structural integrity even after breakage, ensuring continuous protection
Security & Penetration Resistance	13.52mm structure offers enhanced protection	Ideal for high-value artifacts or sensitive display areas requiring anti-theft performance
Acoustic Insulation	Rw ≈ 36–38 dB	Creates a quiet viewing environment for museums and galleries
Aging Resistance	High-performance PVB + AR coatings	Long-term clarity retention, no yellowing or delamination even in long-term display environments

Recommended Applications

VGC 12.76mm/13.52mm Museum Laminated AR Glass is widely applicable to various high-end display scenarios:

Museum showcases and vitrines for cultural relics, antiques, and artworks
Protective glass covers for precious artifacts and historical documents
Luxury jewelry, watch, and high-end commodity showcases
Gallery exhibition walls and private collection enclosures

Project Case: National Museum Exhibition Hall Glazing Upgrade

The museum replaced outdated ordinary display glass with VGC 12.76mm & 13.52mm low-iron laminated AR glass for 280+ relic vitrines.

✅ <1% surface reflection for glare-free viewing

✅ 99% UV block to protect fragile paintings & manuscripts

✅ Laminated safety construction for public exhibition security

✅ High transmittance & true-color presentation for artworks

The project solved optical defects and relic conservation challenges, winning long-term cooperative recognition from the museum. VGC provides one-stop customized museum glass solutions for global cultural exhibition projects.

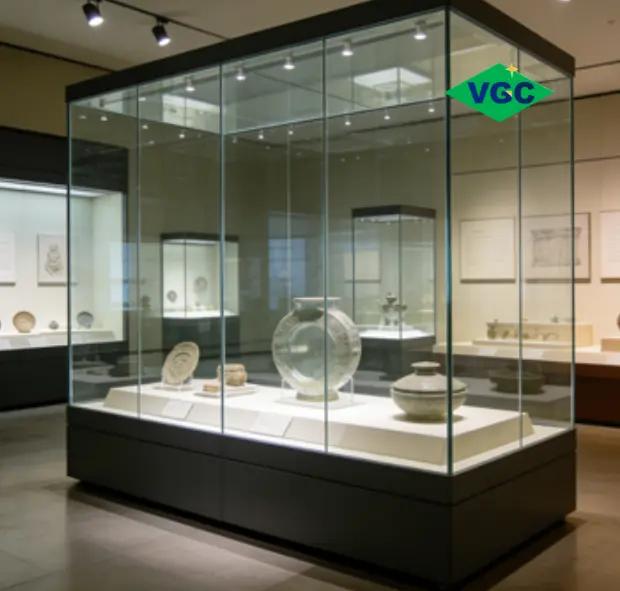

Low reflection Museum glass

As a professional global glass supplier, VGC strictly controls the production process of Museum Laminated AR Glass, ensuring each product complies with international standards and is accompanied by authoritative test reports. We provide one-stop services from customization consultation to logistics delivery, tailoring optimal glass solutions for your display needs. For more details or a quotation, please visit our official website.
