Free Custom Glass Solutions made to order
VGC cuts glass to your required size and shape, then adds edging, holes, cutouts, printing, tempering or lamination as needed. You can use it for displays, Home appliances, furniture, picture frames and building projects.
-Custom Glass Processing Scope-
Tell us what the glass needs to do
-Specification range-
Choose the Thickness, Size, Finish You need.
Our production possibilities are subject to the glass type, thickness, Size, shape and processing you need.
More detailed information and more professional services.

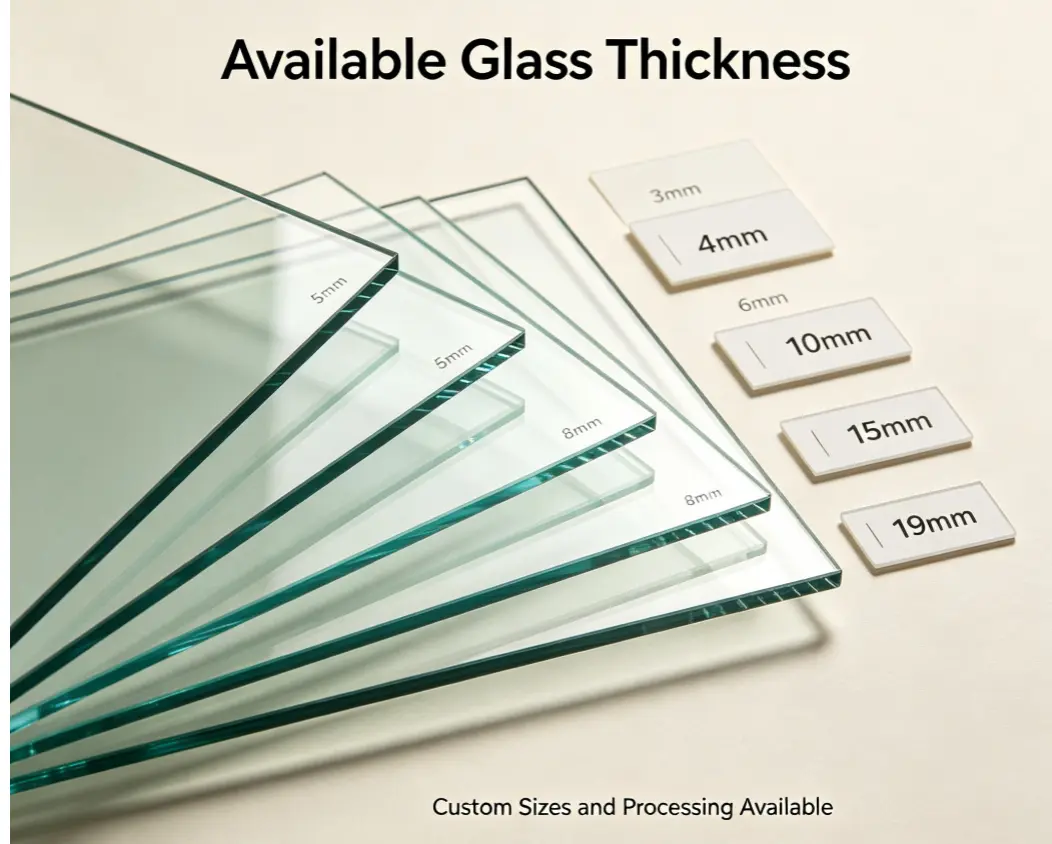

Clear Thickness.Clear options
| Glass Types | Thickness options (mm) |
|---|---|
| Thin and electronic Display | 0.5, 0.7, 1.0, 1.5, 1.8, 2.0, 3.0, 4.0 and 6.0 mm. |
| General Cut-to-size Glass | Common listed thicknesses include 1.1, 1.5, 1.8, 2.0, 3.0, 4.0, 6.0, 8.0, 10.0 and 12.0 mm. |

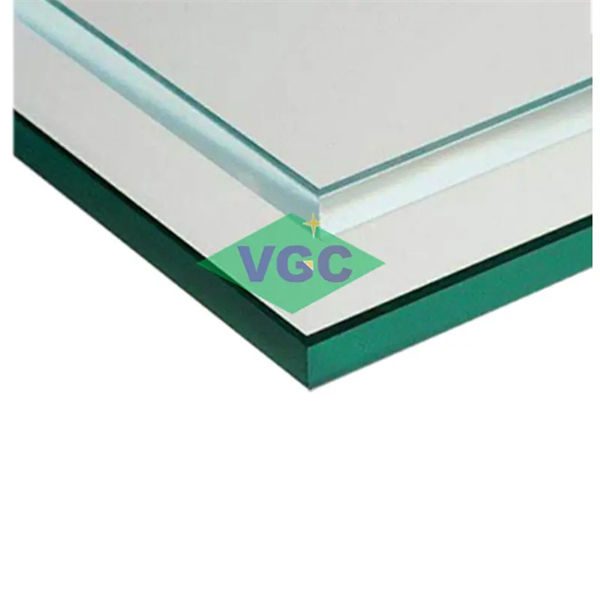

| Ultra-clear and Clear Float | 3, 4, 5, 6, 8, 10, 12, 15 and 19 mm. |

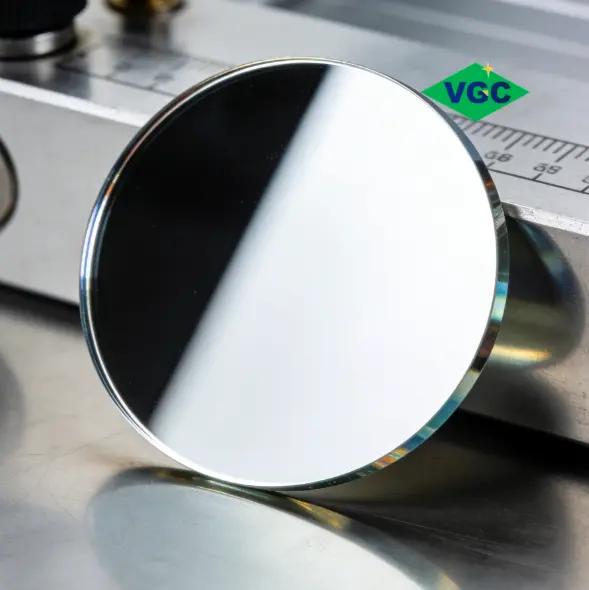

| Silver Mirror Glass | 1.0, 1.5, 1.8, 2.0, 3.0, 4.0 and 6.0 mm. |

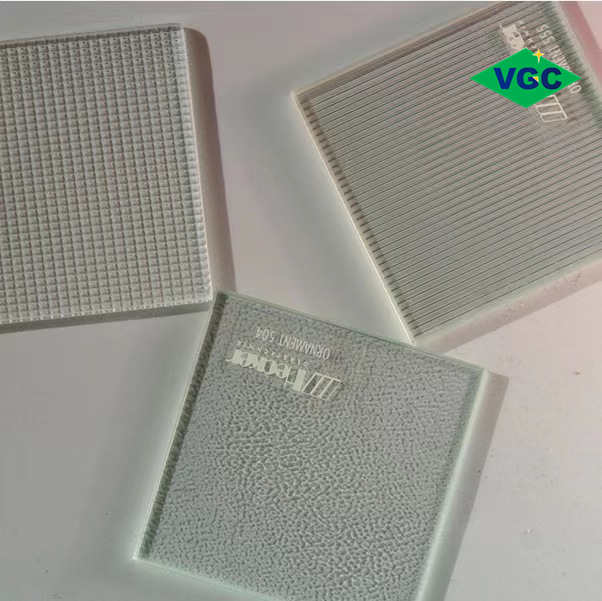

| Patterned Glass | 3, 4, 5, 6, 8, 10, 12 mm. |
| Other combined | Any customized Thickness available |
| Specifications | Description&Options |
|---|---|
| Colors and surfaces | Clear, Extra Clear, Bronze,Grey,Blue,Green and frosted options are listed, plus reflective, patterned, printed, AG, AR and coated routes. |
| Size and shape | Size is made to order. Send the final outline, corner radii, hole locations, slot details and fitting clearance in the drawing. |
| Edge options | Clear-cut, seamed, polished and other project-based edge finishes are available. |
| Extra processing | VGC can review drilling, notches, cutouts, CNC and water-jet shaping, silk-screen printing, tempering, lamination and selected coating combinations as per your appliaction. |
How your order moves from drawing to Packed Up?
Step 01 Order & Drawing Confirmation
Confirm the Glass Specifications,drawing, use conditions, and all technical details before production; Design the packing details as per glass types, quantity and shipping destination.
Step 02 Glass Cutting
Select the qualified Substrate Glass Types, then Cut standard Glass sheet into required dimensions accurately.
Step 03 Edge Processing
Cleaning the cut-into Glass pieces, then Grinding and polishing edges totally as per the requirements for safety.
Step 04 Quality Inspection&Cleaning
Inspection The defects after Edging One by One under High lighting Conditions, Then Clean the Glass surface automatically for the next step of processing.
Step 05 Printing, Coating for surface or Safety processing
If needed, the glass part then goes through Frosting by Laser or silk-screen printing for the colored surface.
For safety requirements, will proceed the tempering or lamination by advanced lines.
For special industry optical or energy saving function, glass will pass the Coating procedures to achieve.
Step 06 Strict Quality Inspection &cleaning
Full inspection for dimension, appearance ,defects and performance.
cleaning automatically on-line again before packing if needed.
Step 07 Professional Packaging
Shock‑resistant professional packaging to avoid breakage. checked and packed to match the part size and shipping method.
Choose a glass route that matches the part.
