VGC Bulletproof glass (also called ballistic glass or bullet-resistant glass) is a special type of safety glass designed to resist and absorb the impact of bullets and other projectiles.It is not completely indestructible, but rather engineered to slow down, deform, and stop bullets depending on its thickness, material composition, and protection level.
1-Product General Info
Product Name: Bulletproof Glass
Main Thickness:25.0mm/35.0mm/43.0mm etc (Range19mm-360mm)
Main Size: 300×300 mm – 3660×2440 mm (customized)
Glass Type: Laminated Safety Glass
| Item | Bulletproof Glass(laminated safety glass) |
| Standards | ISO 9001; US & EU ballistic standards (EN 1063, NIJ, UL 752 – on request) |
| Raw Material | Float Glass (Clear / Ultra-Clear) + PVB / SGP / PU inter-layers + optional PC plate |
| Edge Finish | Flat polished, beveled, chamfer Edge, C-edge, etc. |
| Shape | Rectangular, circular, irregular shapes available |
| Processing treatment | Precision cutting, edge grinding, drilling holes, surface treatment |

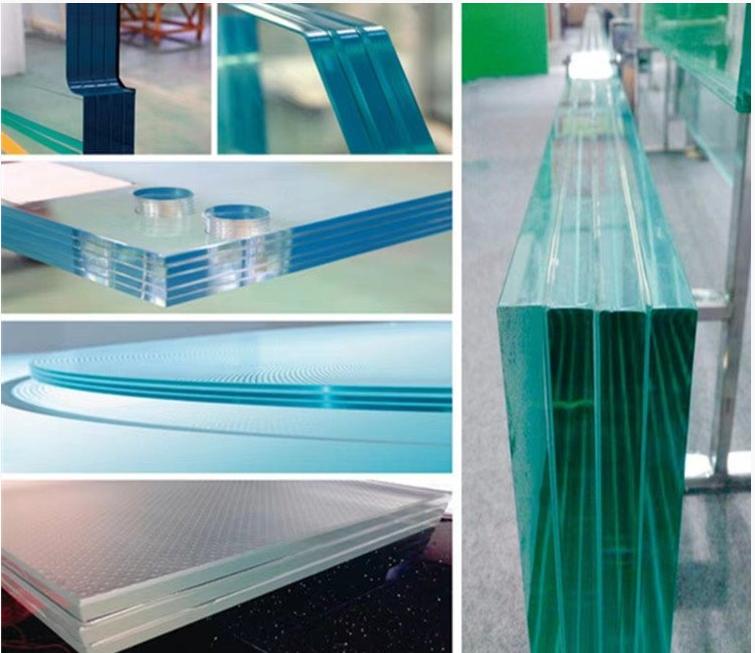

bulletproof glass Supplier
2-Bulletproof Glass Types (Levels)
| Protection Level | Typical Thickness | Resistant Firearms / Bullets |
| B4 | ~25 mm | 9 mm Parabellum /44 Magnum |
| B5 | ~35 mm | AK-47 (7.62×39 mm) |
| B6 | ~43 mm | M14, M16 (7.62×51 mm, 5.56×45mm) |
| Other levels security requirements | Up to 360 mm | Customized according to client’s security requirement |

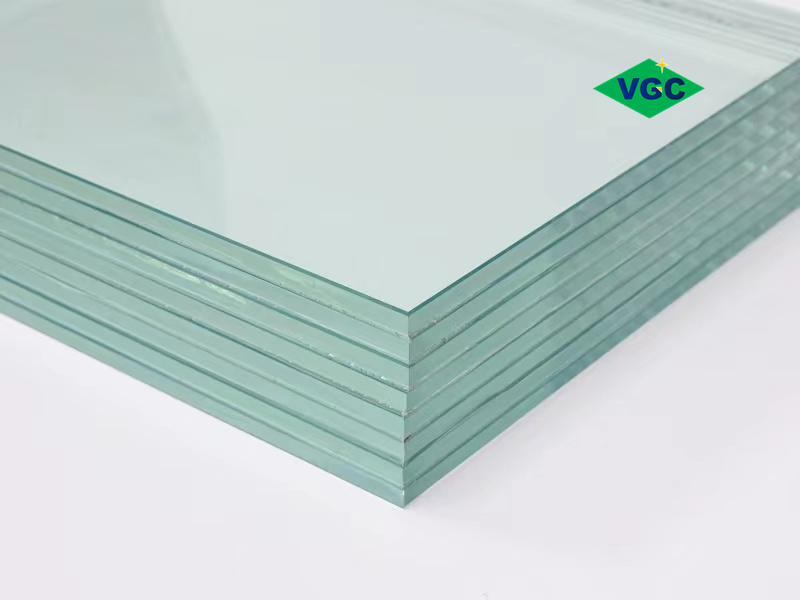

Multi-layers laminated glass
3-Optical&physical Properties
Ballistic Resistance:Stops multiple shots depending on level
High Safety:Prevents penetration, protects human life & property
Impact Resistance:Absorbs and disperses kinetic energy
Durability:Strong adhesion between inter-layers, long service life
Weather Resistance:UV, temperature and humidity resistance (with SGP/PU inter-layer)
| Property | Value/Range |
| Light Transmittance | ≥ 75% (depending on thickness & glass type) |
| Surface Flatness | ≤ 0.3 mm/m |
| Scratch Resistance | No visible scratches under 500 lx lighting |
| Bubble / Inclusion | None visible to naked eye |
| Wave Distortion | None |
| Thickness Tolerance | ± 0.5 mm (meets US & EU standards) |

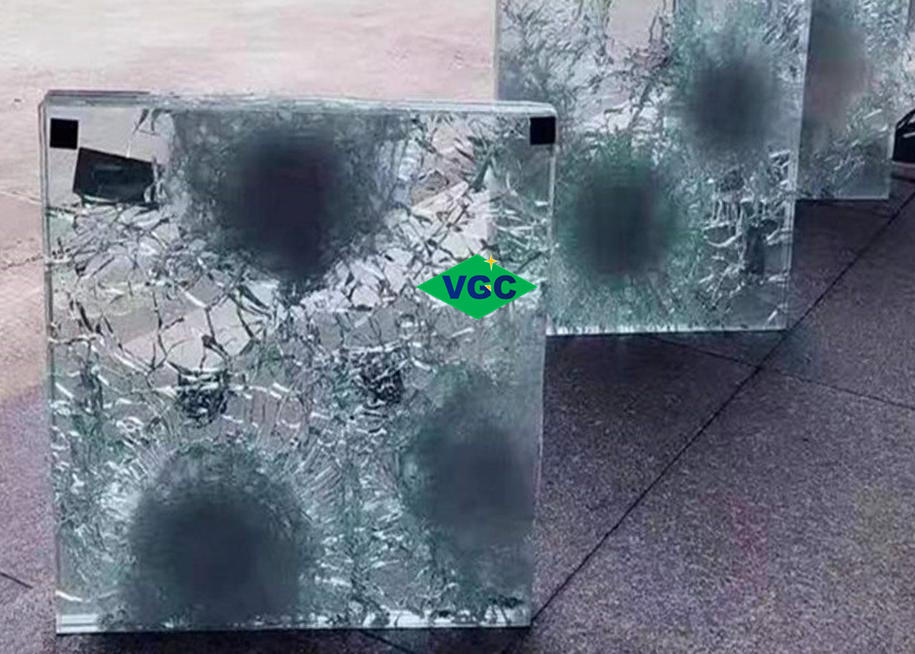

VGC ballistic glass
4-Applications (Uses)
* Residential: Villas, private houses
* Finance: Banks, cash centers
* Culture: Museums, exhibition halls
* Luxury: Jewelry stores, high-end shops
* Security: Armored cars, military vehicles, control rooms
* Aerospace & Marine: Airplanes, submarines
